The world's first real superyacht TV

C SEED SUPERMARINE TV 201 & 144

The single most spectacular engineering achievement of the C SEED Supermarine TV is its unique electric drive system: A wildly sophisticated combination of vertical and horizontal drives retracts the Ultra Compact 144 inch screen into a minimal integration depth of only 62cm (24.4inch), saving valuable space on and below decks. Still, the new C SEED Supermarine TV screen takes only 30 seconds to rise to its impressive height of 3m (9.8 ft.) with effortless ease. Massive MicroLED panels unfold silently within the next 45 seconds, presenting an outdoor TV screen of overwhelming brilliance on top of an elegantly dominating, almost sculptural masterpiece of technology and design to bring giant entertainment to fascinated viewers on their luxury superyacht.

DESIGN ELEGANCE

The new C SEED Supermarine TV screen is a package of ultra-powerful technology wrapped into streamlined Porsche Design Studio design aesthetics. Striking formal simplicity, crafted from marine grade aluminum and steel materials in impeccable workmanship, perfectly matches the design environments of contemporary superyachts.

UNIQUE ENTERTAINMENT ON BOARD

The C SEED Supermarine TV system provides unique video viewing comfort and entertainment on your yacht. Unfold it and rotate it up to 180° with a push of the button on its radio remote control. Enjoy perfect picture quality, produced by a 4K media controller with HDR10+ video control and distortion-free glass fiber transmission – and matching sound quality even in high winds, brought to you by a high-end sound system with two superyacht TV broadband speakers and one subwoofer.

THE MOST BRILLIANT
PICTURE UNDER THE SUN

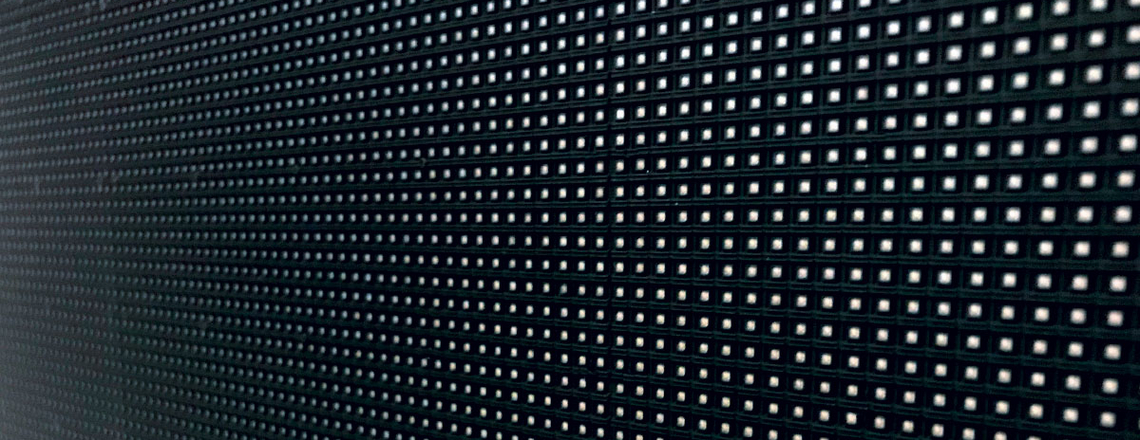

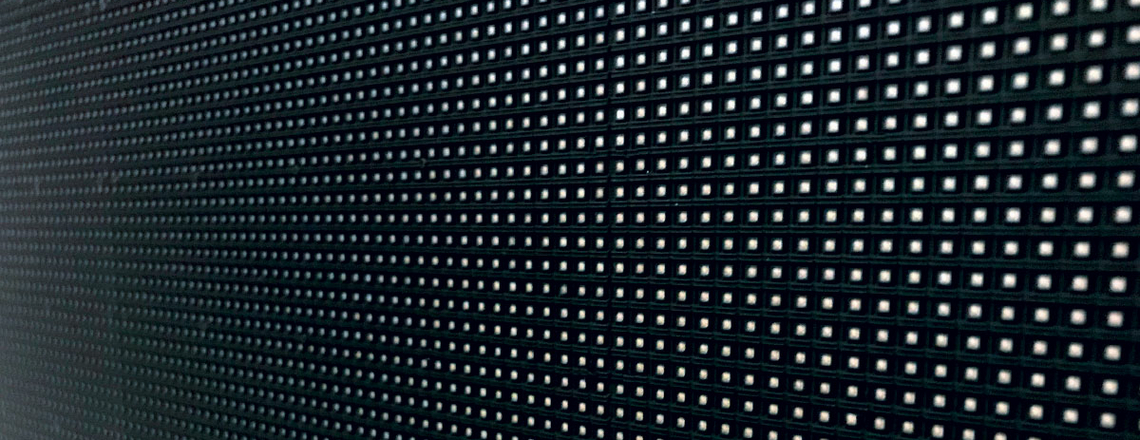

The C SEED Supermarine´s unique qualities shine brightest onboard when the Mediterranean or Caribbean sun is high: Its exceptional luminosity of 4,000 nits and its contrast ratio of 7,000:1, together with best pixel pitch and 16 bit per color processing depth produces a crystal clear picture for state of the art outdoor TV, video and movie entertainment even in glaring daylight conditions.

A CHOICE OF SIZES

201 & 144 inches features

C SEED Supermarine TV systems are available in 201 inch and 144 inch screen diagonals to accommodate to the available space for the necessary integration box. Both luxury superyacht TV sets share the same lifting action, design concept and technologies. The size difference results from the number of seamlessly unfolding MicroLED columns, with five columns making up the 144 inch set and seven columns unfolding the huge 201 inch superyacht TV screen.

UNPARALLELED FEATURES

Individual approach, customized solution

• Seamless, crystal clear picture even in direct sunshine by MicroLED technology
• Unique Porsche Design unfolding TV feature
• Customized solutions to fit our products in the existing space below the deck
• Space-saving design with shallow storage area and fully electric lifting unit
• TV Rotation up to 180 degrees
• Optimum sound quality, even in high winds
• Crafted from marine grade aluminum and steel
• Electric slide mechanism for center positioning of the TV (CSL only)
• Automatic weathertight TV-Cover

TECHNICAL DATA
& drawings

TV System
201 CSL/NCS
144 CSL/NCS
144 ULC
Brightness
nits
4,000
Pixel Pitch
1.90
1.60
1.60
Processing Depth
bit
16 per color
Color Spectrum
colors
64 billion
Refresh Rate
Hz
3,840
Lifespan LED
h
100,000
Contrast Ratio
7,000:1
Color Temperature
K
6,500-10,000
Viewing Angle- Horizontal
degrees
160
Viewing Angle- Vertical
degrees
160
LED Fixings
Back-Service
Operating Temperature Range
°C
-20 to +45
Number of MicroLEDs
2,963,520
2,200,000
2,200,000
Broadband speaker peak out
(optional)
W 6 x 250
W 2 x 250
/
Broadband speaker frequency range
(optional)
40 Hz - 22 kHz
40 Hz - 22 kHz
/
Physical Dimensions TV
LED TV Size (Diagonal)
inch/mm
201 / 5105
144 / 3658
144 / 3658
LED TV Size (Width)
inch/mm
176.4 / 4480
126 / 3200
126 / 3200
LED TV Size (Height)
inch/mm
94.5 / 2400
69 / 1760
69 / 1760
Standard LED Screen (Depth)
inch/mm
3.9 / 99
LED TV Area
sq.ft./m²
116.3 / 10.8
60.3 / 5.6
60.3 / 5.6
LED TV system weight
kg
2,800
1,800
1,600
Physical Dimensions Stowed Position
Basin size (Length)
inch/mm
157.4 / 3998
153 / 3876
121.5 / 3084
Basin size (Width)
inch/mm
58 / 1472
48.3 / 1226
38.8 / 985
Basin size (Height)
inch/mm
37.8/ 960
30/ 764
24.4 / 620
Input / Output
Video Input
6 x HDMI, 1 x HDCP 2.2 support
6 x HDMI, 1 x HDCP 2.2 support
2 x HDMI, 1 x HDCP 2.2 support
Serial in/output
2 x USB
2 x USB
1 x USB
Audio Output
pre-amp, 9.2, independent sub
pre-amp, 9.2, independent sub
pre-amp
Network Connection
1 x RJ45
Operation
Power Supply LED Screen System
3 x 400V+N+PE/32A/50-60Hz AC (3~)
Input Power LED (Max)
W/m²
880
Input Power LED (Typical)
W/m²
230
Power consumption (Typical)
kW
5.7
3.8
3.8
Power consumption (Max)
kW
19
14
14
Specific Features
Electric slide mechanism for center positioning of the TV system (not for ULC + NCS)
TV Rotation Angle: 90° left and 90° right
Electric elevating lift
Remote Control
9.2 AV-Receiver
9.2 AV-Receiver
/
4K LED HDR10+ Controller
Marine grade materials
Automatic TV Cover
The most powerful sound experience onboard

SUPERMARINE SPEAKERS

Hidden in underfloor storage casings of your yacht, the C SEED Supermarine speakers await activation. At the push of a button on the C SEED Audio app they rise majestically to face the audience, and the stage is set for an unforgettable performance. Visually, they complement the C SEED Supermarine TV monolith style. Acoustically, they are providing superior sound to round off perfect days, grace beautiful surroundings and entertain guests at superyacht parties.

Ultimate
quality

One-piece metal casings, precision-machined out of massive blocks of aluminum, provide C SEED Supermarine speakers with superior resonating bodies for overwhelming sound quality. Stainless steel parts in critical spots guarantee reliable longevity.

BRILLIANTLY PRACTICAL

With the flush mount option, the C SEED speakers merge with their surroundings to show a flat, uniform surface when not in use. This allows seamless integration into decks made of wood or stone, and enables unrestricted combinations of both the architect´s conceptual idea for minimalistic design and the idea of the composer whose music is released in incredible brilliance by the elevated speakers. By installing fully retractable TV and speakers around a helipad, it makes great use of the space as an entertainment area, but can retract in 90 seconds, allowing a helicopter to land.

Concert acoustic
from any angle

The heart of the C SEED 125 was created by masters of outdoor speaker engineering: L-Acoustic´s passive speaker technology reproduces the entire frequency range with amazing, powerful brilliance. Each yacht speaker projects a 110 degree beam angle, enabling the system to cover even super large decks while providing a remarkably stable sound experience.

Select your
size

C SEED Supermarine speaker system is available in two sizes: a standard version of 89 cm height and a smaller version of 48 cm height to accommodate to the available space for the necessary storage casing in your superyacht.

TECHNICAL DATA
& drawings

Features
89
48
Type
retractable passive 2-way coaxial outdoor speaker system
retractable passive 2-way coaxial outdoor speaker system. Driver tiped by 5°
Configuration
full range from 2.0 stereo to 9.2 surround sound
Speaker type
L’Acoustics coaxial
Axisymmetric maximum
125 dB
Nominal directivity (-6dB)
100°
Usable bandwidth (-10dB)
60Hz - 20kHz
Physical data
HxWxD
890 x 332 x 332mm / 35 x 13 x 13 inch
482 x 332 x 332 / 19 x 13 x 13 inch
Weight
140 kg / 308 lbs
110 kg / 243 lbs
Materials
marine grade stainless steel, aluminum & rubber gasket
Extend/retract drive
remote-controlled electric telescopic drive
Remote control
APP controlled IOS, intelligent embedded audio control
Options
Colors
cabinets available in black, gray, aluminum, and other colors, finishes and coatings on request
Flush mount
this option allows seamless integration into, surfaces made of stone, wood, tile or concrete
