The biggest TV engineered to the most compact perfection

C SEED HLR TV 201 & 144

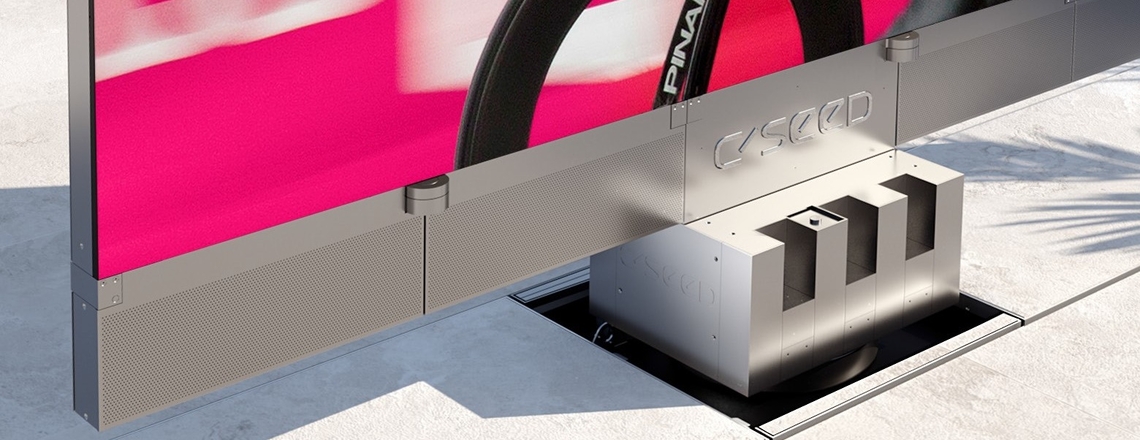

C SEED HLR TV 144 and 201 HLR TV systems are designed for all those out there who dream to have the maximum efficiency of their luxurious spaces. Either while relaxing on your roof top or enjoying a glamorous pool party, you can fully rely that HLR models will deliver an outstanding audio visual experience and performance, no matter how unique your requirements may be. To make this happen, our technical department made another additional step forward - HLR TV´s are now featuring a compact and shallow compartment box of only 85 cm (33.4 inch), powered by state-of-the-art horizontal lifting mechanism.

The 144 or 201 inch TV screen will burst into action with revolutionary pixel power for ultra-high resolution images - its exceptional luminosity of 4,000 nits together with refresh rate 3,840 Hz and 16 bit per color processing depth produces a crystal clear picture even in glaring daylight conditions. No other technology generates such an extraordinary color spectrum with similar precision and reliability.

NEW ALL IN ONE LIFTING SOLUTION

New “all in one” lifting solution will speed up the installation process - C SEED will provide all equipment, installation, drawings, project management and operational user manuals. Installation time is 4 to 5 days with minimal groundwork.

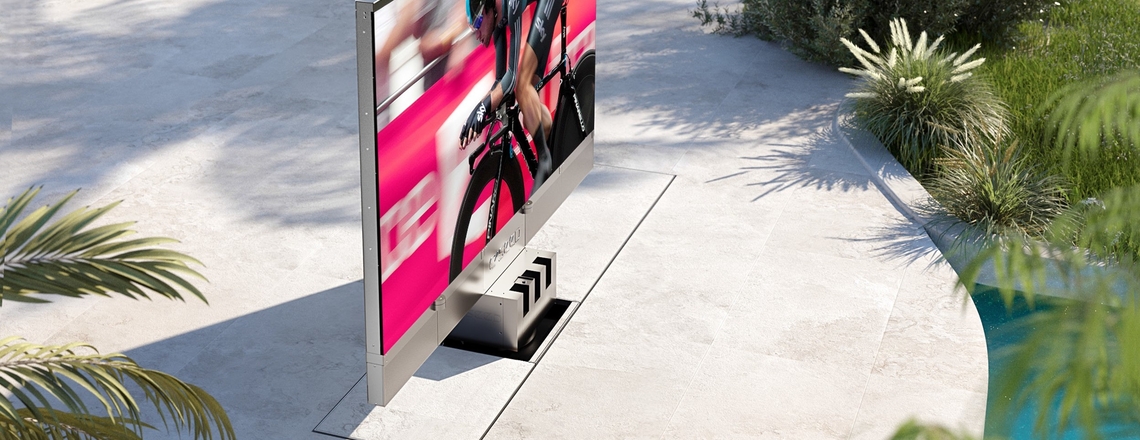

The C SEED 144 and 201 HLR TV is hidden in its compartment box, waiting for activation by a simple push of a button on the remote control. With full automated opening, C SEED HLR TV takes 30 seconds to rise and the kinematics of five /seven massive MicroLED panels unfold equally soundlessly within the next 45 seconds forming a seamless and unique outdoor TV experience. The display can be rotated 90 left & right or 180⁰ only one direction. With the same ease, HLR TV submerges into the compartment box for space saving storage when not in use, allowing space to be used multifunctionally.

A CHOICE OF SIZES

C SEED HLR TV systems are available in 201 inch and 144 inch screen diagonals to accommodate to the available space for the necessary integration box. Both sets share the same lifting action, design concept and technologies. The size difference results from the number of seamlessly unfolding MicroLED columns, with five columns making up the 144 inch set and seven columns unfolding the huge 201 inch screen.

SMART FEATURES

HLR TV's use SMD black face technology for low reflectivity and high brightness. Over 8 million active pixels emit their own light for a level of perfect black, intense color and stunning picture quality even at wide angles and brightest daylight conditions.  A high-performance integrated sound bar provides the audio and new C SEED media controller with full 4k processing features simple home automation integration such as Crestron or similar.

TECHNICAL DATA
& drawings

Tv System
201
144
Brightness
nits
4,000
Pixel Pitch
1.90
1.60
Number of MicroLEDs
2,963,520
2,200,000
Processing depth
bit
16 per color
Color spectrum
colors
64 billion
Refresh rate
Hz
3,840
Lifespan
h
100,000
Contrast ratio
7,000:1
Colour temperature
k
6,500 - 10,000
Viewing angle - horizontal
degrees
160
Viewing angle - vertical
degrees
160
LED fixings
back - service
Operating temperature range
°C
-20 to +45
Physical dimensions
LED TV size (diagonal)
inch/mm
201 / 5105
144 / 3658
LED TV size (width)
inch/mm
176.4 / 4480
126 / 3200
LED TV size (height)
inch/mm
94.5 / 2400
69 / 1760
LED TV area
sq.ft./m²
116,3 / 10,8
60,3 / 5,6
TV Rotation
90⁰ left and right or 180⁰ one direction
LED TV system weight
kg
2800
1650
Physical dimensions stowed position
Concrete basin size (Length)
inch/mm
184/ 4.675
160/ 4.060
Concrete basin size (Width)
inch/mm
48 / 1.210
42 / 1.060
Concrete basin size (Height)
inch/mm
34 / 844
Input / Output
Video input
1 x HDMI, HDCP 2.2 support
Serial in/output
2 x USB, 1 x RS232
Audio output
pre-amp, 11.2, independent sub
Network connection
1 x RJ45
OPERATION
Power supply LED screen
Standard
3 x 400V+N+PE/32A/50-60Hz
3 x 400V+N+PE/16A/50-60Hz
High-Leg-Delta
3 x 240V+PE/60A/50-60Hz
3 x 240V+PE/30A/50-60Hz
Single-Phase / Split-Phase
240V/120V+PE/110A/50-60Hz
240V/120V+PE/60A/50-60Hz
Input power LED max | typical
W/m²
880 I 230
Power consumption max | typical
kW
19 I 5,7
14 I 3,8
Equipment
Remote control
Yes
Control server
Yes
A/V receiver
Yes
Video processor
Yes
Amplifier
Yes
Electric elevating lift
Yes
Main cabinet
Yes
Automatic TV Cover
Yes
options
Broadband speaker peak out
watt
4 x 250
2 x 250
Broadband speaker frequency range
40 Hz - 22 kHz
