The biggest TV engineered to the most compact perfection

C SEED HLR TV 201 & 144

C SEED HLR TV 201 AND 144 HLR TV systems are designed for all those out there who dream to have the maximum efficiency of their luxurious spaces. Either while relaxing on your roof top or enjoying a glamorous pool party, you can fully rely that HLR models will deliver an outstanding audio visual experience and performance, no matter how unique your requirements may be. To make this happen, our technical department made another additional step forward and developed underground storage compartment for the most compact solution possible. HLR TVs now come with a compartment box, more compact and more shallow and powered by the state-of-the-art hydraulic horizontal lift mechanism.

PLUG AND PLAY WITH EASE

Behind all the ingeniously specifications that make HLR systems stand out, another notable achievement and upgrade comes from a design spectrum. No matter how complex and advanced HLR system models are, they are now supporting out of the box plug and play optimizations that will speed up the installation process and make usage more streamlined.

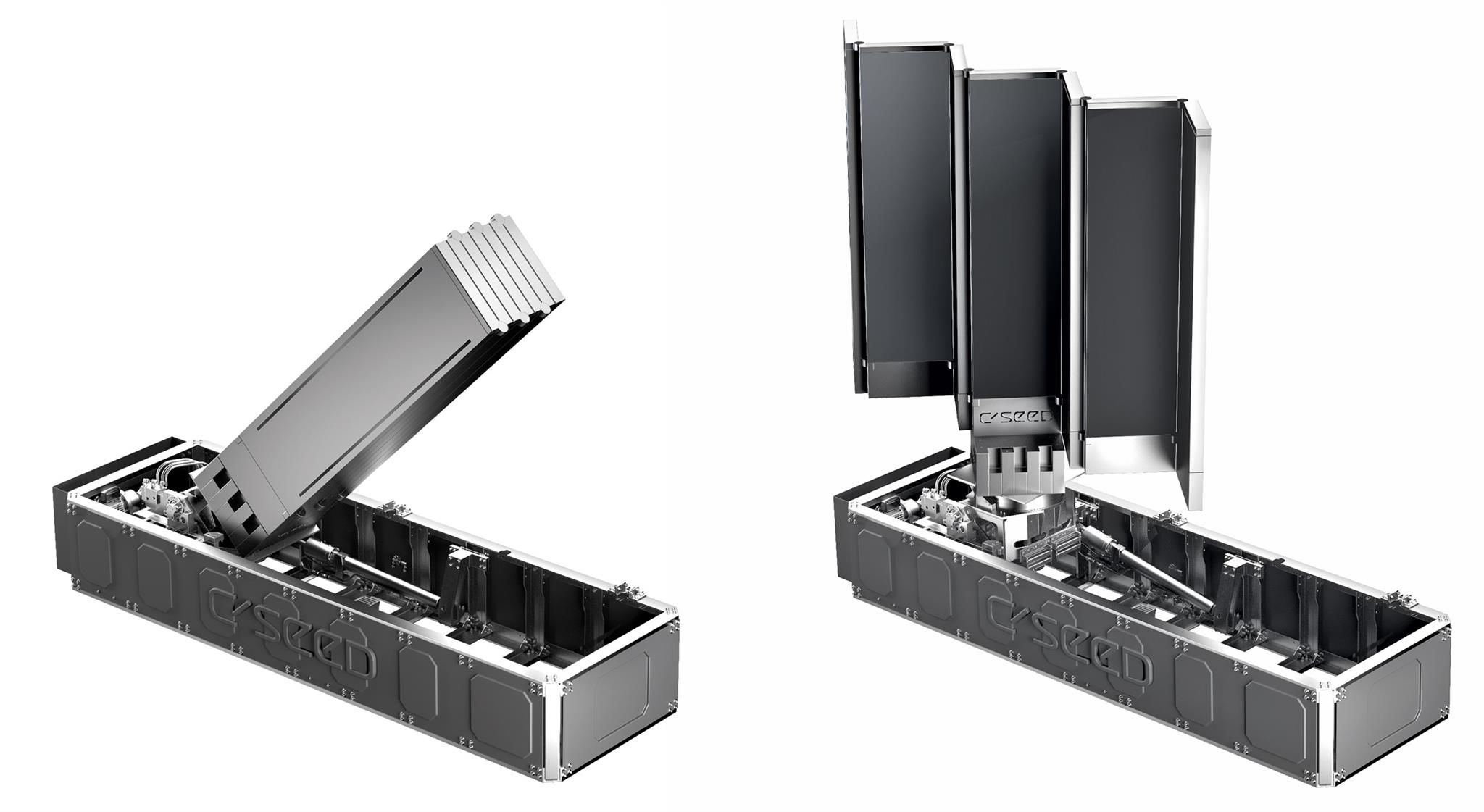

C SEED HLR 201 TV takes only 60 seconds to rise to its height of 3 meters and seven LED panels unfold in the next 25 seconds to create a seamless display. With the same ease, HLR TV submerges into the compartment box for space saving storage when not in use. Its immaculate engineering and clean design, combines the best of two worlds – simple, efficient and flawless execution. HLR system can slide into your view at your roof top, penthouse pool or anywhere you want it to be.

A CHOICE OF SIZES: 201 AND 144 INCHES FEATURES

C SEED HLR TV systems are available in 201 inch and 144 inch screen diagonals to accommodate to the available space for the necessary integration box. Both sets share the same lifting action, design concept and technologies. The size difference results from the number of seamlessly unfolding LED columns, with five columns making up the 144 inch set and seven columns unfolding the huge 201 inch screen.

SMART FEATURES

The C SEED HLR TV 201/144 comes with a highest pixel pitch resolution available on the market and SMD black face technology, 3-way outdoor audio system and wireless connectivity to an indoor-installed media hub, new C SEED media controller with full 4k HDR processing and simple home automation integration such as Crestron or similar.

TECHNICAL DATA
& drawings

Tv System
Tv System

201
144
Brightness
nits
4.500
Brightness Control
Manual
Number of SMD LEDs
bit
1.317.120
689,92
Pixel pitch
mm
2,85
Processing depth
bit
16 per color
Color spectrum
colors
64 billion
Refresh rate
Hz
1,920
Lifespan
h
100,000
Contrast ratio
5.000:1
Colour temperature
k
6.500 - 9.000
Viewing angle - horizontal
degrees
160
Viewing angle - vertical
degrees
140
LED fixings
back - service
Operating temperature range
°C
-20 to +45
LED failure rate
≤0.01% (0% at delivery)
options
Tv System

201
144
Broadband speaker peak out
watt
6 x 250
2 x 250
Broadband speaker frequency range
Broadband speaker frequency range
Subwoofer peak out
watt
1 x 1200
Subwoofer frequency range
28 Hz - 2000 Hz
Input / Output
Tv System

201
144
Video input
7 x HDMI, HDCP 2.2 support
Serial in/output
2 x USB, 1 x RS232
Audio output
pre-amp, 11.2, independent sub
Network connection
1 x RJ45
Physical dimensions
Tv System

201
144
LED TV size (diagonal)
inch/mm
201 / 5105
144 / 3658
LED TV size (width)
inch/mm
176.4 / 4480
126 / 3200
LED TV size (height)
inch/mm
94.5 / 2400
69 / 1760
LED TV size (height)
inch/mm
94.5 / 2400
69 / 1760
LED TV area
sq.ft./m²
116,3 / 10,8
60,3 / 5,6
LED TV weight
kg
1400
915
Physical dimensions stowed position
Tv System

201
144
Shaft size (length)
inch/mm
179 / 4560
154 / 3920
Shaft size (width)
inch/mm
54 / 1380
54 / 1380
Shaft size (height)
inch/mm
38 / 970
Weight of guide rails and trolley
kg
1565
1315
Guide rails and trolley
Stainless steel painted
Worm gear drive
High grade alloy steel
OPERATION
Tv System

201
144
Power supply LED screen
3 x 400V+N+PE/32A/50-60Hz AC (3~)
Hydraulic pressure
bar
120
Input power LED (max)
W/m²
880
Input power LED (typical)
Input power LED (typical)
230
Power consumption (typical)
kW
5,7
3,8
Power consumption (max)
kW
19
14
Equipment
Tv System

201
144
Remote control
ja
Control server
ja
A/V receiver
ja
Video processor
ja
Amplifier
ja
Hydraulic elevating lift
ja
Main cabinet
ja
Cover
ja
Brochure with Technical Data
